Wireless IR Extender System Kit WL-T

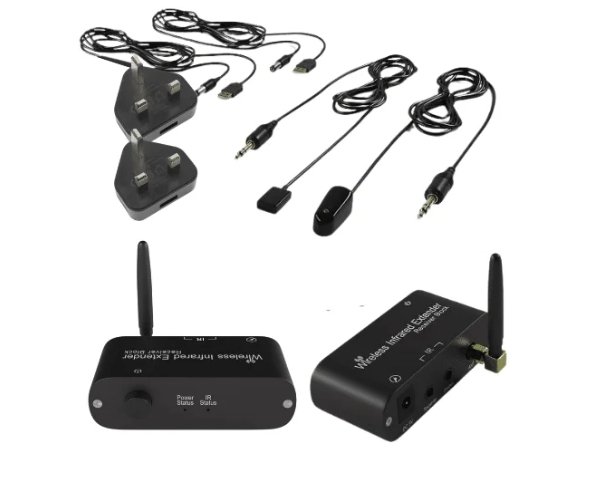

Package Content for Model WL-T
- 1x Transmitter Block T1(TX) 32x20x20mm
- 1x Receiver Block (RX) 70x33x21mm
- 1x IR Receiver Cable 1.5m
- 1x IR Emitter Cable 1.0m
- 2x USB DC5V Adaptor
- 2x USB/DC5.5mm cable 0.5m
- 1x User manual
Out of stock
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Wireless IR Extender System Kit WL-T1 allows you to control devices between 30 to 150 meters away through walls, doors, ceilings, floors, etc. Note that different home build up and wireless equipments use at home may affect IR transmitting distance.

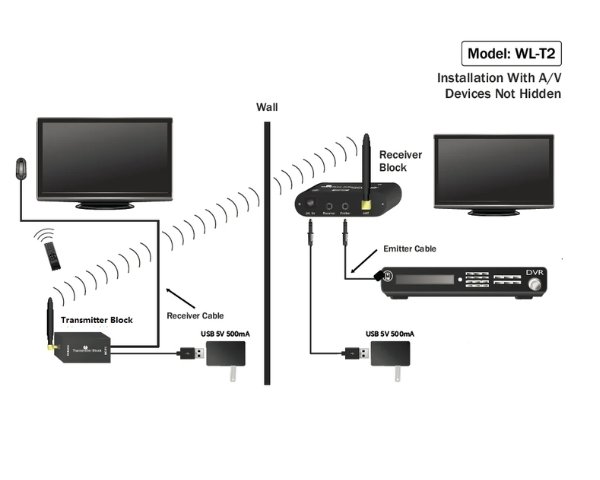

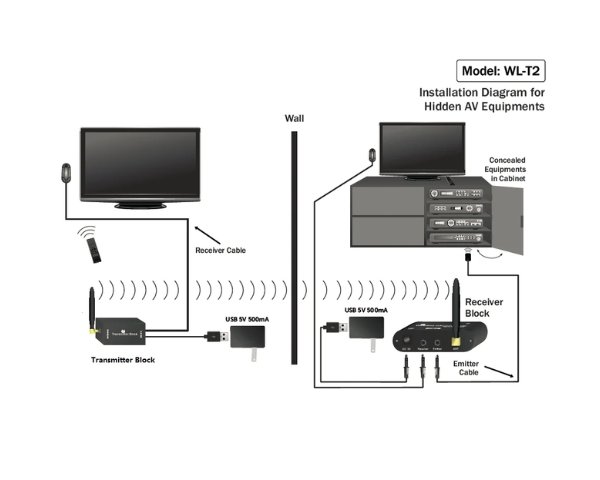

Set Up :
Wireless Receiver Block is to be placed in the same locations as the devices you are trying to control. When it gets the signal from the Transmitter Block, the IR emitter connected on the Receiver block will send the signals to respective devices inside the cabinet.
Wireless Transmitter Block is at the location where remote control will be taking place. It is connected with an IR Receiver which receive signals from remote control.
Upon receiving the signal from IR Receiver, the transmitter will send signal to Receiver Block at another location. Additional Wireless Transmitter block can be purchased if user want to remote control from more locations.
| Set-type | Set (Rx + Tx) |
|---|---|
| Transmit Type | Wireless |
