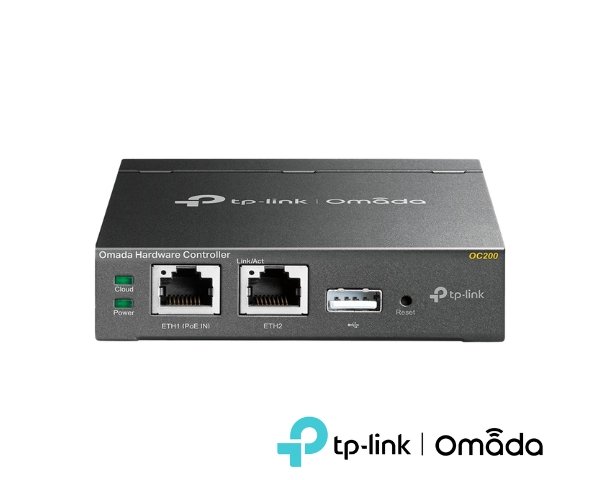

Omada Hardware Controller OC200
- Product Code: EAP245
- Manufacturer: Tp-link
Package include power supply!
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
TP-LINK Hardware Controller OC200
| Centralized Management | Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers. |
|---|---|

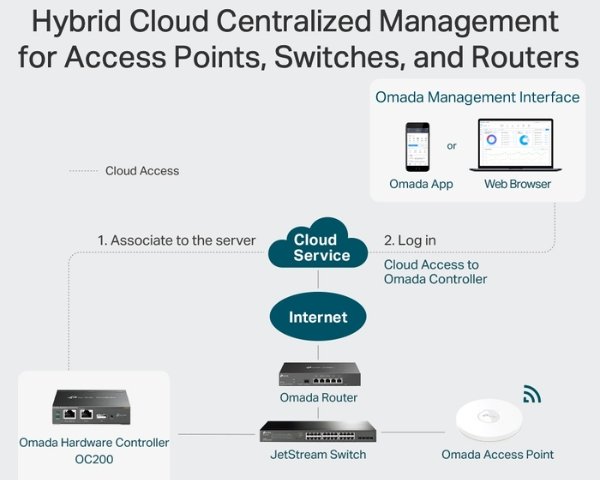

| Free Cloud Access | Manage and monitor with the Omada app or Web UI from anywhere, anytime. |
| On-Premises Management | Locally monitor and manage devices with the ultimate security and stability. |
| Industry-Leading Hardware Design | A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports. |
| Flexible Power Supply | 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation. |
| Easy and Intelligent Network Monitoring | The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution |
| Real-Time Network Topology | Helps IT admins quickly see and troubleshoot connections at a glance. |
| Easier Network Maintenance | Wi-Fi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance. |
| HARDWARE FEATURES | |
|---|---|
| Interface | 2 × 10/100Mbps Ethernet Port 1 × USB 2.0 Port for configuration backup 1 × Micro USB Port for power |
| Power Supply | 802.3af/at PoE or Micro USB（DC 5V/1A） |
| Dimensions | 3.9 × 3.9 × 1.0in. (100 × 98 × 25mm) |
| FEATURES | |
|---|---|
| Wireless Fuction | |
| Wireless Security | |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | Up to 100 Omada access points, switches, and routers |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | Automatic device discovery Batch configuration Batch firmware upgrading Intelligent network monitoring Event logs and notifications Unified configuration Reboot schedule Captive portal authentication |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |

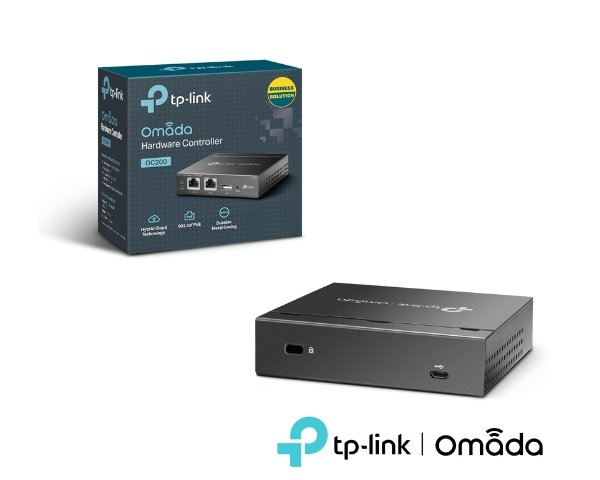

| Package Contents | Omada Hardware Controller OC200 Quick Installation Guide Ethernet Cable |
| System Requirements | Internet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
