EDISION SPLITTER 3way DC pass SDC-3
IR COMPATIBLE
Package includes:
- – Splitter SDC-3
- – Mounting screws
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

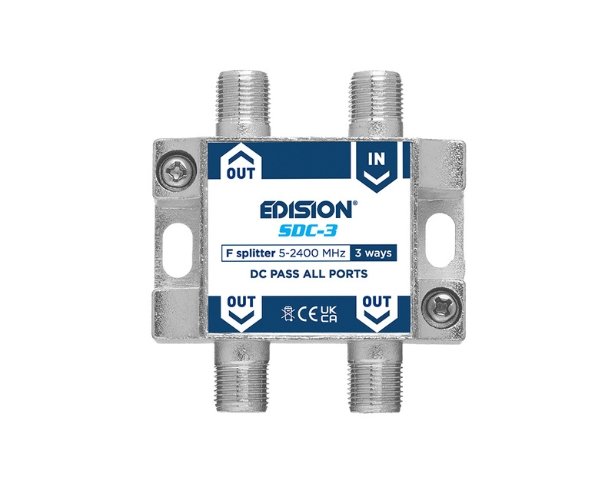

EDISION SPLITTER 3 ways DC PASS F 5-2400Mhz SDC-3, is an all-band RF splitter with F-female type plugs and nickel plated high quality zinc diecast casing.
It is designed and manufactured with high standards, featuring low through loss and high isolation.It can be used in all TV antenna installations, both for Terrestial and Satellite TV signal, when the coaxial cabling needs splitting to 3 outputs.
SPLITTER 3 ways DC PASS SDC-3 with its DC-pass in all OUT-to-IN ports, it facilitates the technician in satellite TV installations and also, when DC-pass is needed, for example, to power active dipole antennas and mast amplifiers.
Technical features:
– All-band RF splitter with F-female type plugs
– Frequency Range: 5-2400 Mhz, Impedance: 75 Ohm
– Input ports: 1
– Output ports: 3
– Nickel plated high quality zinc diecast casing
– Through loss TERR.: 8 dB
– Through loss SAT.: 9 dB
– DC Pass: all OUT ports to IN port, 12vdc/24vdc , up to 500mA maximum
– Grounding ports
– Dimensions (W x H x D): 52x58x22 mm
– Packing: High Quality colored giftbox with hanging port
Insertion loss (IN/OUT) maximum:
– 5-40 MHz: 6.5 dB
– 471-1000 MHz: 8.0 dB
– 1001-1350 MHz: 9.0 dB
– 1351-1750 MHz: 9.5 dB
– 2051-2400 MHz: 11.0 dB
Isolation (OUT/OUT) minimum:
– 5-40 MHz: 18 dB
– 471-1000 MHz: 21 dB
– 1001-1350 MHz: 21 dB
– 1351-1750 MHz: 20 dB
– 2051-2400 MHz: 20 dB
| Weight | 0,068 kg |
|---|---|
| Dimensions | 0,3 × 2,6 × 2,8 cm |
| Output ports | 3 |
| RF Splitter type | F all band DC Pass |
