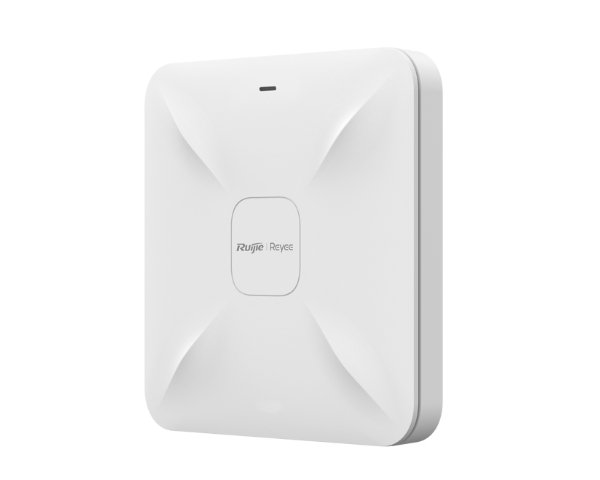

Ruijie Reyee Ceiling Mount AP RG-RAP2200(E)
- Access point | Wi-Fi 5, 1267Mbps, RJ45 1000Mb/s, 80 clients, ceiling mounted
- POE INJECTOR is not included in package
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Ruijie Reyee Ceiling Mount AP RG-RAP2200(E) high performance Wi-Fi 5
- dual-radio performance, up to 1.267Gbps.
- Get better performance with 802.11ac wave 2’s MU-MIMO technology.
- Support to optimize the entire wireless network with just one click.
- Easily set up your Wi-Fi network with Ruijie Cloud APP in 3 minutes.
- With Ruijie Cloud, easy to maintain your networks remotely.
Meet Ruijie Reyee RG-RAP2200(E), a next-generation ceiling access point. With Wi-Fi 5 technology, it guarantees lightning-fast and reliable connection in every corner of your home or office. With speeds up to 1775 Mbps and the ability to support up to 110 devices, forget about signal quality drops.
Ruijie Reyee Ceiling Mount AP RG-RAP2200(E) is a built-in Gigabit Ethernet port with PoE support provides the device with data transmission and power at the same time. And with a 2×2 MU-MIMO radio module, the Ruijie Reyee RG-RAP2200(E) raises communication standards, offering simultaneous transmission to multiple devices and maximizing your network performance.
Management via Ruijie Cloud and Mobile App
The Ruijie Reyee app on your smartphone is the key to instant wireless network deployment. In just a minute, you can scan a QR code to get your network up and running.
With the app, you can easily add devices, configure Wi-Fi, and monitor the status of your network—all straight from your phone or tablet.
MODEL | RG-RAP2200(E) | |
Hardware specifications | ||
Radio | Dual-stream dual-band | |
Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n | |
Operating Bands | 802.11b/g/n :2.4G ~ 2.4835GHz
802.11a/n/ac : 5G:5.150~5.250GHz,5.725~5.850GHz (country specific) |
|
Antenna | Internal antennas(2.4G: 2dBi,5G: 2dBi) | |
Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO | |
Max Throughput | Up to 400Mbps at 2.4G
Up to 867Mbps at 5G 1.267Gbp per AP |
|
Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
|
Maximum Transmit Power | 5.725~5.850GHz:≤20dBm (EIRP)
5.150~5.250GHz:≤20dBm (EIRP) 2.4~2.4835GHz:≤20dBm (EIRP) |
|
Adjustable Power | 1dBm | |
Dimensions | 194mm×194mm×35mm (excluding mounting kits) | |
Weight | 0.45kg (excluding mounting kits) | |

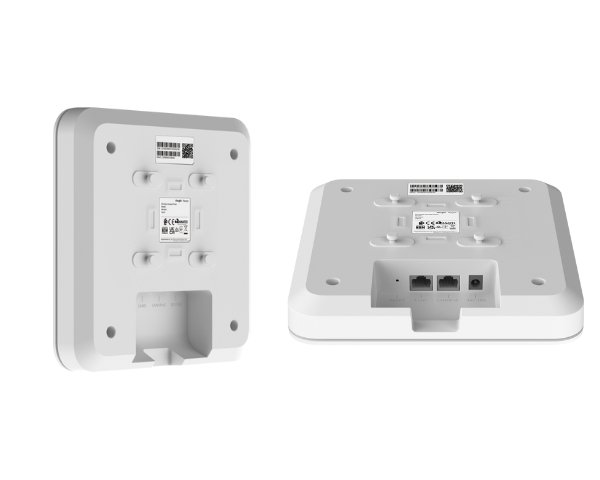

2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE |
|
|
Management Port | NA | |
LED Indicator | NA | |
Power Supply | Single indicator (green light) | |
Power Consumption | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)
802.3af/802.3at PoE |
|
Environment | ≤ 12.95W | |
Operating temperature: 0°C~40°C | ||
Storage temperature: -40°C~70°C | ||
Operating humidity: 5%~95%(non-condensing) | ||
Installation | Storage humidity: 5%~95%(non-condensing) | |
Safety Standard | GB4943, IEC 62368-1 | |
EMC Standard | GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035 | |
Vibration Standard | IEC61373 | |
Radio Standard | EN300 328, EN301 893 | |
MTBF | >250000H | |
SOFTWARE FEATURES | ||
Operating Mode | AP mode and routing mode | |
WLAN | Maximum number of clients: 110 | |
Recommended number of clients: 80 (16 at 2.4GHz, 64 at 5GHz) | ||
Up to 8 SSIDs | ||
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID |
||
SSID-based and radio-based STA limit | ||
Support Layer 2 user isolation | ||
Roaming | Support Layer 2 and Layer 3 roaming | |
Security | Support PSK authentication | |
Support static blacklist and whitelist | ||
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption | ||
Routing | Support static IP address, DHCP, PPPoE Dial Up | |
Management and maintenance | Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
|
Platform management features | Automatic RF adjustment via the platform | |
Unified configuration via the platform | ||
Unified monitoring via the platform |
