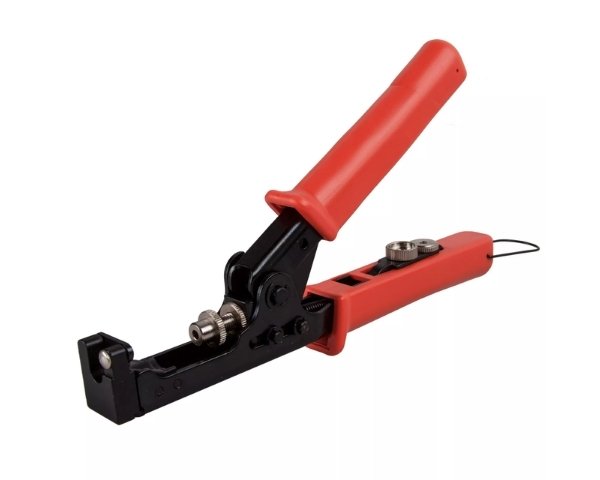

‘F’ Connector Compression Tool HLT-548B
- Coax Compression Crimping Tool F BNC RCA Crimper RG59 RG6 Cable Connectors
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
‘F’ Connector Compression Tool HLT-548B- Compress ‘F’ Connectors to antenna rf coaxial cables using the HLT-548B Compression tool. RG59 | RG6 | RG11
- Use the correct head for the connector.The head can be rotated
- Open the handles and then insert the connector with cable into holder
- Squeeze the handles
- Adjust the adjusting screw to suit different length of connectors

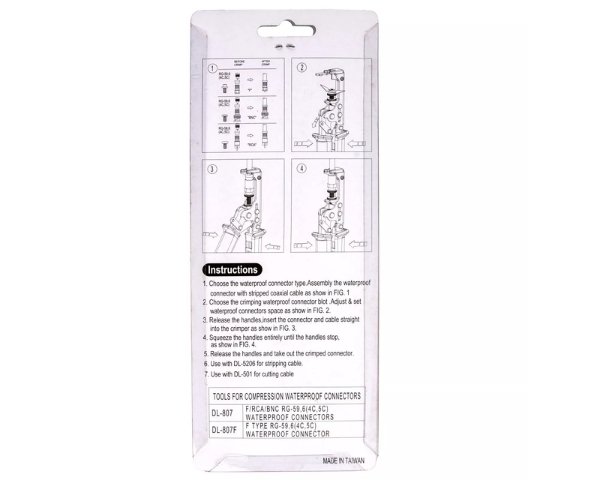

How to Use the ‘F’ Connector Compression Tool HLT-548B :
- Prepare the Cable:
- Strip the coaxial cable to the appropriate length using a coaxial cable stripper.
- Make sure the center conductor is exposed and the dielectric is clean.
- Attach the Connector:
- Slide the ‘F’ connector onto the prepared end of the coaxial cable.
- Ensure the center conductor is properly aligned and protruding through the connector.
- Insert the Cable and Connector into the Tool:
- Open the jaws of the HLT-548B compression tool.
- Place the ‘F’ connector with the cable inside the designated slot on the tool.
- Compress the Connector:
- Squeeze the handles of the compression tool firmly until the connector is fully compressed onto the cable.
- Release the handles and remove the compressed connector from the tool.
SKU: 17-01-0015
