EDISION LINE AMPLIFIER LIA-200 5G 24db 2out
Package includes:
- – Line Amplifier LIA-200
- – Plastic screwdriver for adjustments
- – Upat and mounting screws
- – Manual GR/EN/DE/ES/IT/FR
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
EDISION LINE AMPLIFIER LIA-200 5G 24db 2out DVB-T/T2 Digital Terrestrial
It can be used on a coaxial cable line with television signal from a primary amplifier, for additional amplification of a weakened television signal, to a group of televisions in the building and/or to an apartment/group of televisions in it.
It has 1 common signal input, for the UHF and VHF/FM bands, with an independent gain control for each one, for the appropriate selection by the technician. With its 2 outputs, it provides the possibility of connecting 2 lines of coaxial cable, for the corresponding distribution to the televisions.
It has a 5G LTE interference cut-off filter and its circuit is contained in a fully metal shell, for protection against electromagnetic interference.

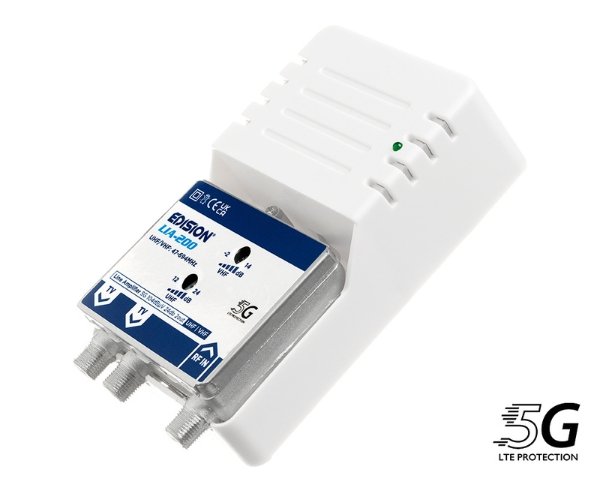

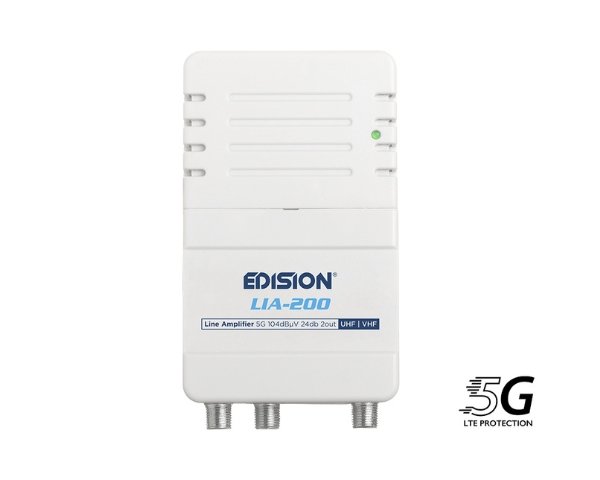

This unit is inside a box made of synthetic material with compact dimensions, together with its power supply. It has a cover and internally on the amplifier, there are the signal input and output indicators and access to the input signal frequency/bandwidth controls.
Technical features:
- – Line Amplifier for Digital Terrestrial DVB-T/T2 TV channels, with 5G LTE interference cutoff
- – For INDOOR use only
- – Frequency Range UHF/VHF: 47-694 MHz
- – Protection from 5G LTE interference: YES
- – 5G LTE interference rejection: <20dB
- – Input ports: 1 UHF/VHF (includes FM)
- – Output ports: 2
- – Maximum Output Level: 104 dbμV
- – Adjustable gain UHF: 12 up to 24 dB, VHF/FM: -2 up to 14 dB
- – Individual trimmer switch, for adjusting the gain of each band
- – Noise Figure: 7 dB
- – Impedance: 75 Ohm
- – Connections: Type-F plugs, female
- – Powering: on board 220v transformer with 2PIN EU plug
General:
- – Power Supply: AC 100-240 50/60Hz
- – Power Consumption: max. 7W
- – Operating Temperature: 0°C … +50°C
- – Storage Temperature: -20°C … +70°C
- – Humidity Range: 10% … 85% RH, non-condensing
- – Dimensions (W x H x D): 70x125x35 mm
- – Weight: 0,23 kg
- – Color: white
- – Packing: High Quality colored giftbox with hanging port
- – Warranty: 2 years
SKU: 11-05-00
| Weight | 0,27 kg |
|---|---|
| Dimensions | 58 × 28 × 20 cm |
| Project Scenario | In-Line |
| Frequency Range | 47-694 |
