EDISION HDMI MODULATOR 3in1 mini

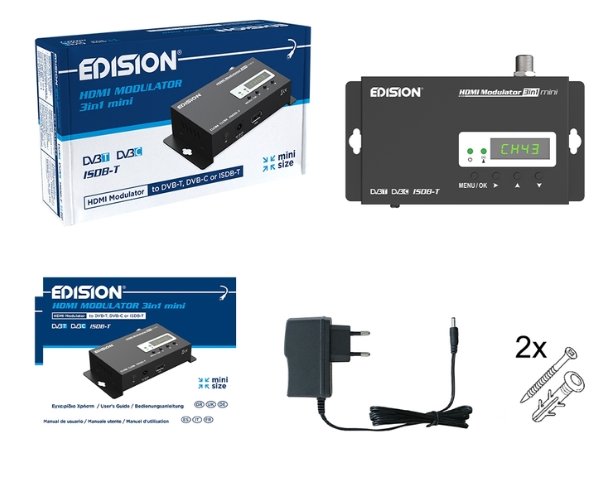

Package includes:
- HDMI Modulator 3in1 mini
- Power Supply Unit 5V/2.0A EU
- Upat and mounting screws
- User Manual GR/EN/DE/ES/IT/FR
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

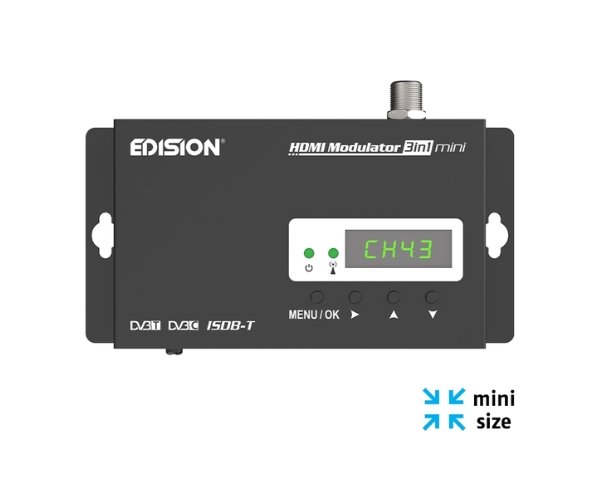

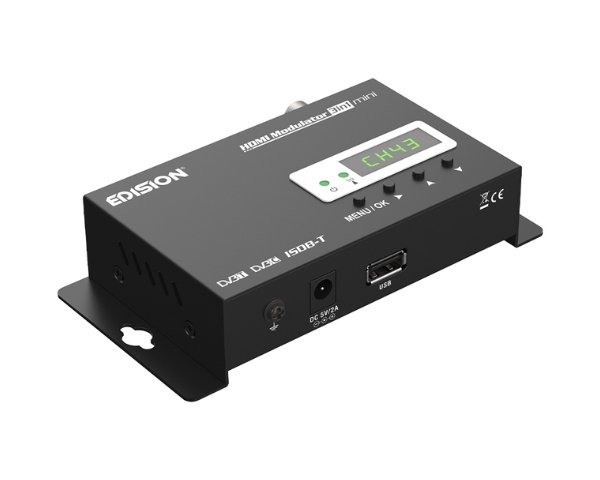

EDISION HDMI modulator 3in1 EDISION in mini size. HDMI signal input from any HDMI source (Satellite Receiver, TV Box, CCTV, DVD, Digital Signage, etc.) can be converted up to FULL HD 1080p Digital Terrestrial DVB-T, ISDB-T or Cable DVB-C MPEG4 signal output, in VHF or UHF band.
Easy and fast configuration with the ID Pre-Config function and space saving in the installation with highly compact dimensions for an easy installation, even in minimal space conditions.
Technical features:
- Digital single-channel HDMI Modulator to DVB-T, DVB-C or ISDB-T in mini size
- INPUT signal: 1x HDMI v1.4a
- RF OUTPUT signal: 1 x Digital Terrestrial DVB-T, ISDB-T or Cable DVB-C MPEG4
- Frequency Range DVB-T: VHF (CH.5-12) & UHF (CH.21-69)
- Frequency Range ISDB-T: VHF (CH.7-13) & UHF (CH.14-69)
- Frequency Range DVB-C: 47-862 MHz
- High Video Resolution up to FULL HD 1080p 60FPS
- RF Output Level: Factory default 90 dbμV, with adjustable gain up to +6dbμV or attenuation up to -14dbμV
- MER more than 35dB
- Symbol Rate: up to 31.668 MBPS
- Bandwidth: 6MHZ, 7MHZ, 8MHZ
- Video Encoder MPEG1, MPEG2 MP@HL , MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1, MP@level4.1
- Audio encoder MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
- Processor System: 800MHz 32Bit ARM9 CPU
- Memory DDRIII 16bit 1GBit/s (Embedded) & NOR Flash 32Mbit
- Fast Pre-Config Function / 50 IDs Selectable
- Backup Config File by USB (CFG)
- Software Upgrade by USB

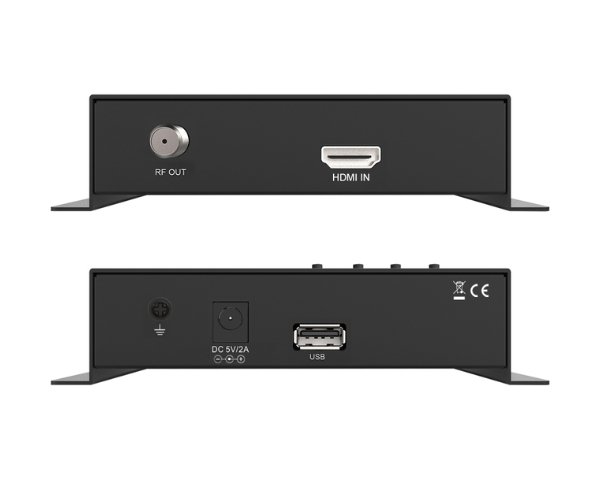

- Ports: HDMI IN, RF OUT, USB, DC 5V/2.0A, GROUND
- 4-digit LED Display
- 4 Front panel buttons: Menu/OK, Right, Up, Down
General:
- Power Supply: 100 – 240 AC 50/60Hz
- Input Voltage: DC 5V 2.0A
- Power Consumption: max. 8.0W
- Operating Temperature: 0°C … +50°C
- Storage Temperature: -20°C … +70°C
- Humidity Range: 10% … 85% RH, non-condensing
- Dimensions: 132x84x31 mm
- Weight: 0,4 kg
- Color: black
- Warranty: 2 years
| Weight | 0,52 kg |
|---|---|
| Dimensions | 47 × 32 × 16 cm |
| Device ports | HDMI out, RF out |
