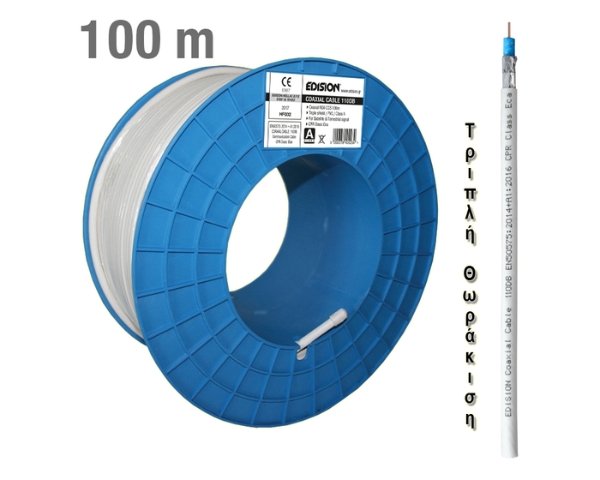

EDISION COAX Cable 110dB White 100m
Coaxial Cable 110DB CCS AL Eca PVC White 100m
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Coaxial cable EDISION 110DB is a COPPER-CLAD STEEL inner conductor RG6 cable, with triple shield and EN50575 :2014+A1 :2016 specifications, compliant with CPR Class Eca.
It is an excellent option for low budget coaxial cable, for satellite and terrestrial TV signal, as well as for CCTV systems that use coaxial cable. In 100-meter reel.
Technical features:
- – Center conductor: COPPER-CLAD STEEL
- – Nominal Diameter: 1.00 mm
- – Dielectric: Physically Foamed PE , 4.6 mm ±0.1mm, Blue
- – Triple Shield: aluminum/polymer foil, aluminum braid wire 48x 0.12mm ±0.01mm, aluminum/polymer foil
- – Jacket: White PVC (CPR-Eca), ROHS, nominal diameter over jacket: 6.80mm ±0.1mm
- – Return Loss @50-300MHz: 18dB, @300-1000MHz : 16dB
- – Minimum bending radius: 35mm
- – Screening efficiency (dB): 110DB
- – Installation Temperature: -5 +50 C
- – Operating temperature: -5 +55C
- – Typical impedance at 200 MHz 75 ± 3Ω
- – Packaging: Blue color Plastic reel, 100m,
- – Dimensions mm/mm/mm: 275 X 130 X 136
ATTENUATION (at 20 C per 100m):
- – Frequency MHz: dB/100m
- – 50 MHz : 12.0 dB
- – 211 MHz : 17.2 dB
- – 865 MHz : 23.4dB
- – 1000 MHz : 30.2 d
| length | 100m |
|---|
