CAVEL F501 TWIST-ON CONNECTOR
FOR RG59 CABLE
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

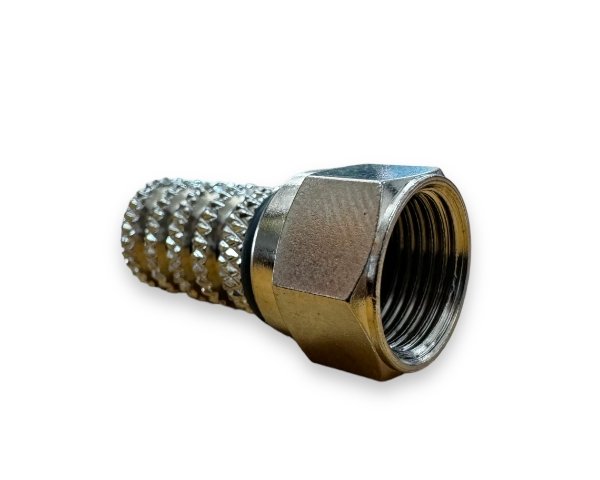

F male twist-on connector for indoor installation
- CAVEL Code: FA501
- Pag. 1/1 Material type :nitin-plated brass
- Connector pull strenght: 134 N
- Overall dimensions : 22,0 x 12,0 mm
- Insertion attenuation : 5 – 2000 MHz < 0,02 dB
- Insertion attenuation :2000 – 2500 MHz < 0,11 dB
- Characteristic impedance: 75 +/- 2 Ohm
- Operational Frequence : 5 – 2500 MHz
- Connector’s screening attenuation : The screening of the connector is higher than that of the cable.
- Structural Return Loss :5 – 500 MHz > 43 dB
- Structural Return Loss: 500 – 1000 MHz > 34 dB
- Compliance to the norm: EN50117-2
- Stripper code : CS00
Suitable for:
- CAVEL SAT501
- CAVEL SAT501N
