553504 Televes “F” 35dB 1 out PRC
- 35dB
- Passive Return
- SUITABLE FOR CABLENET FREQUENCIES
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

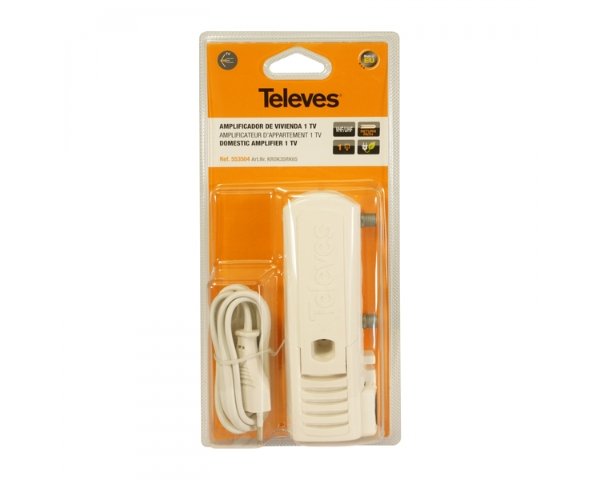

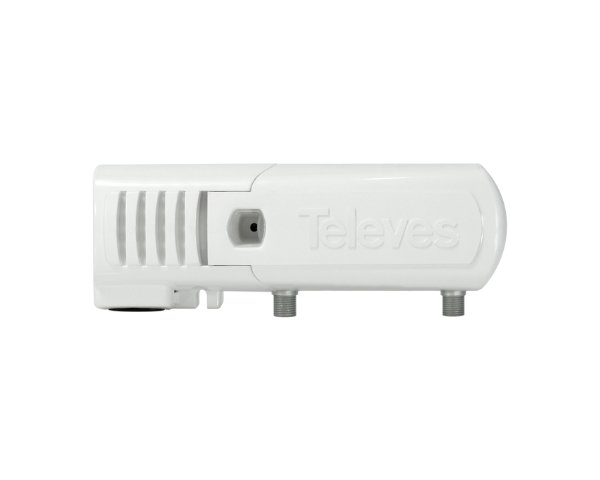

553504 Televes “F” 35dB domestic amplifier equipped with equalization 1 output: VHF/UHF + Passive return channel, DOCSIS 3.0
Domestic amplifier with 1 output to extend the terrestrial television domestic network. Amplifies and equalizes the terrestrial band and provides a passive return channel to allow communication between the subscriber modem and the operator. Its expanded bandwidth in the forward path (88 MHz-1006 MHz) makes the amplifier compatible with DOCSIS 3.0.
Highlights
- Forward channel up to 1 GHz (DOCSIS 3.0)
- Passive return channel 5 MHz – 65 MHz
- Low-impact visual design and limited size
- Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
- Fully automated manufacturing subject to the most stringent quality controls
Main features
- Adjustable equalizer and manual gain control, protected by a folding cover
- Can be wall-mounted using screws
- “F” connectors
553504 Televes “F” 35dB Amplifier can be used for Cablenet RF network in Cyprus as it supports 47-790 Frequencies
Technical Features
| Number of outputs | 1 | |||
|---|---|---|---|---|
| TV output | No | |||
| Frequency range | MHz |
|
||
| Gain | dB |
|
||
| Gain adjustment range | dB |
|
||
| Equalizator | dB |
|
||
| Output level DIN45004B | dBμV |
|
||
| Noise figure | dB |
|
||
| Input voltage | Vac | 220 … 230 | ||
| Mains frequency | 50 Hz / 60 Hz | |||
| Max. current | mA | 24 | ||
| Max. power consumption | W | 2.4 | ||
| Operating temperature | °C | -5 … 45 | ||
| Protection index (IP) | 20 |
| Weight | 0,28 kg |
|---|---|
| Frequency Range | 47-790 |
| Project Scenario | In-Line |
