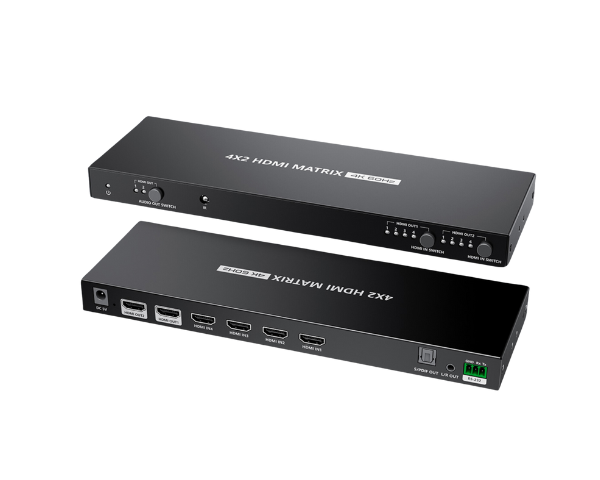

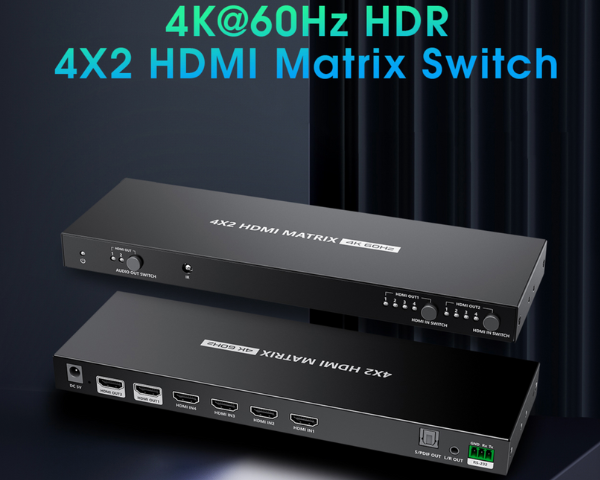

4×2 HDMI Matrix Switch 4096×2160@60Hz LKV422

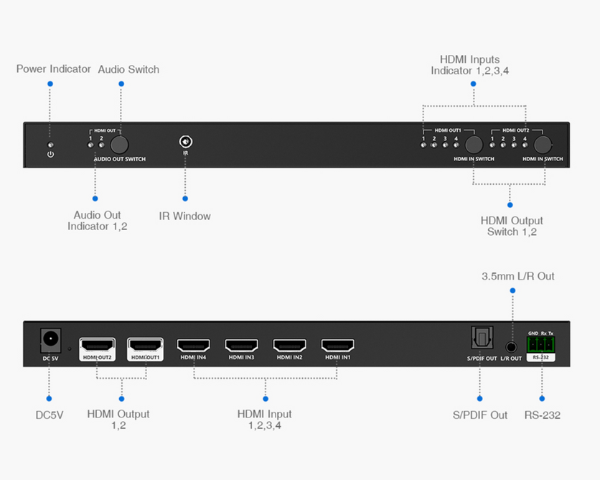

- 4 HDMI Input
- 2 HDMI Output
- Audio SPDF Output
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

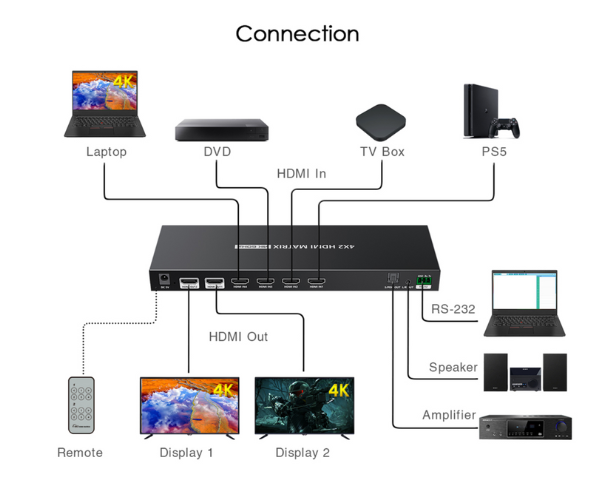

This is a 4-in 2-out HDMI matrix switch, which can switch 4 HDMI input signals to 2 HDMI displays as required.

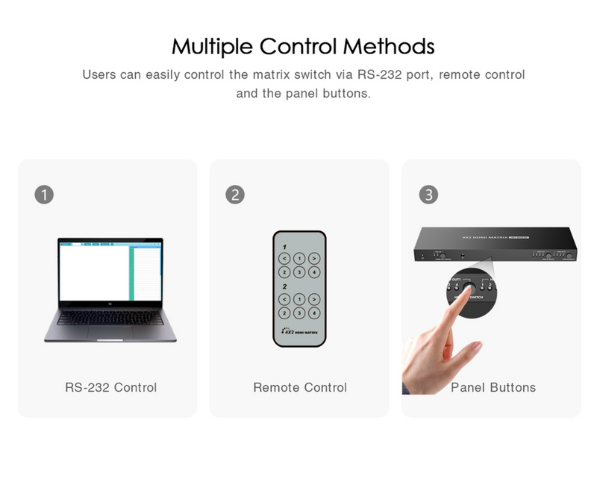

It supports up to 4096×2160@60Hz HDR resolution, with multiple switching methods (IR remote control, buttons, RS-232) to flexibly match input and output devices. HDMI outputs support auto down-scaling. Additional audio output is supported through the S/PDIF port and stereo jack.
This device is a reliable, ultra-high-definition video transmission solution widely used in security monitoring, education and training, exhibition and broadcasting, command center, and other scenarios.
| Feature | Specification |
|---|---|
| HDMI Version | HDMI 2.0 (HDR, YUV444) |
| Compatibility | HDCP 2.2, HDCP 1.4 |
| HDMI Interface | 4 HDMI Input, 2 HDMI Output |
| Transmission Rate | 18Gbps |
| Resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25/30/50/60Hz |
| Audio Format | LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/ Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos |
| RS-232 | 3 Pin (GND/Rx/Tx), Baud rate 9600 |
| Voltage | DC 5V/1A |
| Power Consumption | ＜4W |
| Working Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Humidity | 0~90%RH (No Condensation) |
| Housing | Iron |
| Color | Black |
| Weight | 375g |
| Dimensions | 250.0(L) x 80.0(W) x 21.0(H) mm |
| Protection | ESD protection, 1a Contact discharge level 2 (±4KV), 1b Air discharge level 3 (±8KV), Implementation of the standard: IEC61000-4-2, Lightning protection, Surge protection |
| HDMI Distribution type | Matrix |
|---|
