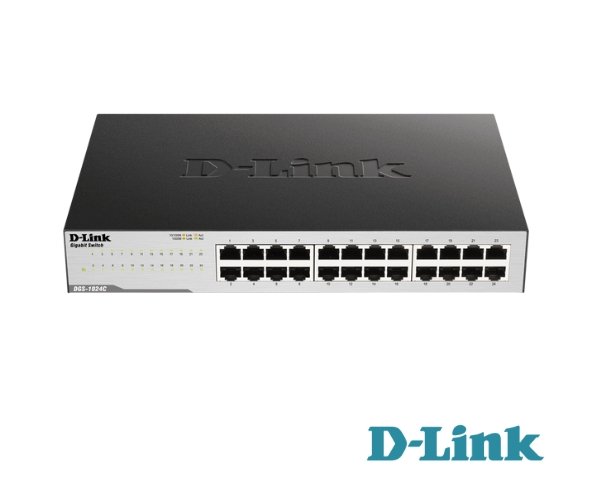

D-Link 24-Port Gigabit Switch DGS-1024C
- 24Port Gigabit Unmanaged Desktop Switch
- Connect up to 23 devices
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
24-Port Gigabit Unmanaged Switch D-Link DGS-1024C, Economical, plug-and-play networking switch for SOHOs and small and medium businesses.
- 24 Gigabit LAN ports for high-speed wired connections
- Plug-and-play installation for convenience
- Auto-negotation on all ports
- Half/full-duplex, auto MDI/MDIX, and store-and-forward switching
- Full wire-speed data transmission
- Energy-efficient design
Fast Connectivity meets Energy Efficiency
The DGS-1024C lets you enjoy fast wired connectivity with 24 Gigabit LAN ports, and easy Plug-and-play installation. It even reduces power to a port when there is no traffic, and optimizes power usage for a port for the length of cable connected to it, giving you more energy efficiency in your SOHO or SMB network.
Upgrade to Gigabit Networking
With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status.
Conserve Energy
The DGS-1024C supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially.
Reliable Plug and Play Installation
The DGS-1024C is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment.
Smooth Streaming
These switches support QoS, which prioritizes network traffic so that time sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.
| 1000Base-T Interface | 24 |
|---|---|
| Auto MDI/MDIX | Yes |
| Switching Capacity | 48Gbps |
| Max. Packet Forwarding Rate | 35.712 Mpps |
| Store & Forwarding Forwading | Yes |
| Dimension | 282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.) |
| Weight | 1.14 kgs |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | – 40 ~ 70 °C |
| Operation Humidity | 10% ~ 90% RH |
| Maximum Power Consumption | 13.5 watts |
| Standby Power Consumption | 6.5 watts |
| Maximum Heat Dissipation | 46.035 BTU/h |
| MTBF | 247,291 hours |
| Power Input | AC：100 ~ 240 V |
| Packet Buffer Size | 512KBytes |
| FAN | Fanless |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By Cable Length | Yes |
| MAC Address Table Size | 16000 |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Jumbo Frame | 9,216 Bytes |
| Switch intelligence | Unmanaged |
| Port count | 1000Base-T Interface x 24,120G CXP Interface |
| 120G CXP Interface | Yes |
| Storage Humidity | 5% ~ 95% RH |
| Acoustic | 0 dB |
| 1000Base-T Interface | 24 |
| 120G CXP Interface | Yes |
| Auto MDI/MDIX | Yes |
| Switching Capacity | 48Gbps |
| Max. Packet Forwarding Rate | 35.712 Mpps |
| Store & Forwarding Forwading | Yes |
| Dimension | 282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.) |
| Weight | 1.14 kgs |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | – 40 ~ 70 °C |
| Storage Humidity | 5% ~ 95% RH |
| Operation Humidity | 10% ~ 90% RH |
| Maximum Power Consumption | 13.5 watts |
| Standby Power Consumption | 6.5 watts |
| Maximum Heat Dissipation | 46.035 BTU/h |
| Acoustic | 0 dB |
| MTBF | 247,291 hours |
| Power Input | AC 100V-240V |
| Packet Buffer Size | 512KBytes |
| FAN | Fanless |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By Cable Length | Yes |
| MAC Address Table Size | 16000 |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Jumbo Frame | 9,216 Bytes |
| Switch Type | Unmanaged |
|---|---|
| Output ports | 24 |
| Speed | Gigabit |
